MINI6410 FRIENDLYARM S3C6410 ARM11 BOARD + 4.3INCH SCREEN

• Mini6410 is a very delicate low-cost high-quality integration ARM11 development board, which uses S3C6410 as the main processor, in the design of inherited the mini2440 "good at heart, Jane in the form of style, and the layout more reasonable, more abundant interface, very applicable in the development of mid, automotive electronics, industrial control, navigation system, media play, and other terminal equipment; can also be applied to the teaching of colleges and universities, embedded training, individual study and DIY.
• Mini6410 with dual LCD interface, 4 wire resistive touch screen interface, 100M network interface, the standard DB9 five, Mini USB 2.0-OTG serial line interface, USB Host 1.1, 3.5mm audio output port, microphone, in the standard TV-OUT interface, pop-up SD interface, infrared receiver and other common interface; also leads to the 4 road serial TTL CMOS, Camera interface, 40pin bus interface, 30pin GPIO interface (SPI, I2C, reusable interrupt, the other containing 3 ADC, 1 DAC), SDIO2 (interface can be connected to SD WiFi, 10PIN) Jtag interface board and a buzzer; in I2C-EEPROM, AD, backup battery, adjustable resistance, 8 keys (such as 4LED, can lead to); all of these, has greatly facilitated assessment and the use of developers, plus our customized size in accordance with the Mini6410 4.3 "LCD module
• Fully play the 6410 supports SD card to start this characteristic, we carefully developed superboot, without the need to connect the computer, as long as the target files are copied to the SD card (can support more than 2G of high-speed and large capacity card), you can in the development board fast very simple to automatically install install or run a variety of embedded system WindowsCE6/Linux/Android/Ubuntu; even no need to burn to write, can be on the SD card directly running them.

Specification:        

• Dimension: 110 x 110 mm
• CPU: 533MHz Samsung S3C6410A ARM1176JZF-S with VFP-Unit and Jazelle (max freq. 667 MHz)
• RAM: 256 MB, 32 bit Bus
• Flash: up to 1GB NAND Flash
• EEPROM: 256 Byte (I2C)
• Ext. Memory: SD-Card socket
• Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
• IR: Infrared Receiver
• USB: 1x USB-A Host 1.1, 1x miniUSB Slave/OTG 2.0
• Audio Output: 3.5 mm stereo jack
• Audio Input: Condenser microphone
• Ethernet: RJ-45 10/100M (DM9000)
• RTC: Real Time Clock with battery
• Beeper: PWM buzzer
• Camera: 20 pin (2.0 mm) Camera interface
• TV Output: AV Out
• LCD Interface: 40 pin (2.0 mm) and 41 pin connector for FriendlyARM Displays and VGA Board
• User Inputs: 8x push buttons and 1x A/D pot
• User Outputs: 4x LEDs
• Expansion: 40 pin System Bus, 30 pin GPIO, 20 pin SDIO (SD, SPI, I2C), 10 pin Buttons (2.0 mm)
• Debug: 10 pin JTAG (2.0 mm)
• Power: regulated 5V
• Power Consumption: Mini6410: 0.25 A, Mini6410 + 4.3" LCD: 0.5 A
• OS Support
  • Windows CE 6
  • Linux
  • Ubuntu
  • Android

Mini6410 4.3inch,friendlyarm mini6410,china mini6410,mini6410 factory,s3c6410 arm11 board

http://www.arm-lab.com/mini6410-friendlyarm-s3c6410-arm11-board-43inch-screen-p-749

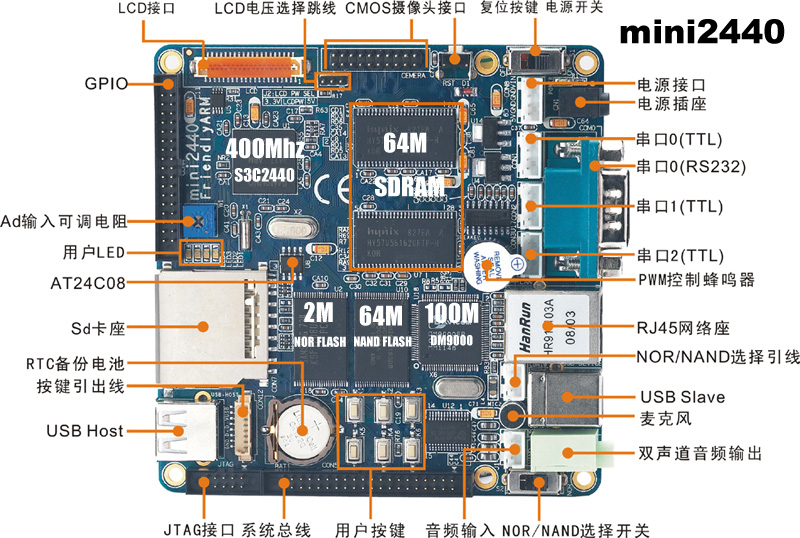

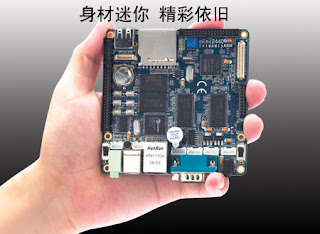

Friendlyarm s3c2440 arm9 mini2440 + 3.5"LCD 256MB flash

• Friendly ARM Mini 2440 is a Single-Board Computer(SBC) built on 400 MHz Samsung S3C2440 ARM9 processor  & 3.5” Touch screen LCD is provided with mini 2440.

•
  It has up to 256MB RAM & up to 1GB NAND Flash and 2 MB NOR Flash with BIOS.
• Friendly Arm Mini2440 is factory preloaded with Linux Qtopia operating system.This post is intended to revive the operating system in case of non booting of device.
• Mini2440 has a Flash NAND ROM of 1 GB &  2MB NOR alternate Bootloader.Top left is switch S2 for NOR/NAND boot selection.To the bottom left is the power ON/OFF switch S1.Slide this switch to left for power ON..
• NAND flash is used in all removable memory cards because of fast write & erase operations (but slow random access).Because of NAND’s multiplexed command address & data bus it requires lesser number of pins for interface.
• NOR flash memory has an advantage of fast Random access ability.It allows for Execute in place (XIP) capability which is often a requirement in Embedded applications.
• Friendly Arm uses both types of flash memory.
• Friendly ARM is capable of running 3 types of Operating system, Linux,Windows CE(Compact Edition 5.0 or 6.0) & Android.
• Friendly Arm boards are available with 1GB Flash memory.

Specification:

• Dimension:100 x 100 mm    
• CPU:400MHz Samsung S3C2440 ARM926T (max freq. 533 MHz)
• RAM:64 MB, 32 bit Bus
• Flash:up to 1GB NAND Flash
• EEPROM:256 Byte (I2C)
• Ext. Memory:SD-Card socket
• Serial Ports:1x DB9 connector (RS232), total: 3x serial port connectors
• USB:1x USB-A Host 1.1, 1x USB-B Device 1.1
• Audio Output:3.5 mm stereo jack
• Audio Input:Connector + Condenser microphone
• Ethernet:RJ-45 10/100M (DM9000)
• RTC:Real Time Clock with battery (CR1220)
• Beeper:PWM buzzer
• Camera:20 pin (2.0 mm) Camera interface
• LCD Interface:41 pin connector for FriendlyARM Displays and VGA Board































• User Inputs:6x push buttons and 1x A/D pot
• User Outputs:4x LEDs
• Expansion:40 pin System Bus, 34 pin GPIO, 10 pin Buttons (2.0 mm)
• Debug:10 pin JTAG (2.0 mm)
• Power:regulated 5V (DC-Plug: 1.35mm inner x 3.5mm outer diameter)
• Power Consumption:Mini2440: 0.3 A, Mini2440 + 3.5" LCD: 0.6 A, Mini2440 + 7" LCD: 1 A
• OS Support
  • Windows CE 5 and 6
  • Linux

friendlyarm mini2440,mini2440 with 3.5inch,arm9 mini2440,china mini2440,mini2440 factory

http://www.arm-lab.com/friendlyarm-s3c2440-arm9-mini2440-35lcd-256mb-flash-p-751

MINI2451 FRIENDLYARM ARM9 S3C2451 WITH 3.5'LCD

• MINI2451 FRIENDLYARM ARM9 S3C2451 WITH 3.5'LCD
•

• Mini2451 is a high performance low power ARM9 integrated platform, which uses S3C2451 Samsung as the main processor, running at the highest frequency of up to 533MHz. As the successor of the mini2440. It is not only uphold the mini2440 "good at heart, Jane in the form of appearance and interface definition and layout size almost 99% and mini2440 compatible, very easy to old users upgrading; for new users to take full advantage of the mini2440 many existing network resources.
• Mini2451 uses a more sophisticated design of power supply system, and better signal integrity planning, can greatly avoid external connected power supply interference and temperature changes bring impact and therefore very suitable for harsh environment of industrial control occasions.
• Mini2451 is also equipped with a faster, larger capacity of 128M DDR2 Memory and standard 256M SLC NAND flash 1GB (optional); Mini2451 by our exclusive development of accurate first touch, it is very suitable for need good touch effect of human-machine interface products project and has been widely applied to many industrial sectors, many users in this endless praise. Compared to the mini2440, Mini2451 the better use of the pop-up SD card connector, and has four serial ports, USB device with the USB 2.0, SDIO, 2 Road IIC bus and so on.
• Mini2451 support SD card boot this characteristic, carefully developed the Superboot-2451, without the need to connect the computer, as long as the target files are copied to the SD card (can support more than 2G of high-speed and large capacity card), you can be on the target board fast very simple to automatically install all kinds of embedded system (windows CE6/Linux/Debian/uCos2/ bare procedure, etc.) system. With the MiniTools, developers also can be conveniently through the USB Download single file to the memory to run, and winner take all windows / Linux platform, which is convenient for debugging purposes.

Specification

• Dimension: 100 x 100 mm
• CPU: 400 MHz Samsung S3C2451 ARM926EJ (max freq. 533 MHz)
• RAM: 128 MB, 16 bit Bus
• Flash: up to 1GB NAND Flash
• EEPROM: 256 Byte (I2C)
• Ext. Memory: SD-Card socket
• Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
• USB: 1x USB-A Host 1.1, 1x miniUSB Slave/OTG 2.0
• Audio Output: 3.5 mm stereo jack
• Audio Input: Condenser microphone
• Ethernet: RJ-45 10/100M (DM9000)
• RTC: Real Time Clock with battery (CR1220)
• Beeper: PWM buzzer
• Camera: 20 pin (2.0 mm) Camera interface
• LCD Interface: 41 pin connector for FriendlyARM Displays and VGA Board
• User Inputs: 4x push buttons and 1x A/D pot
• User Outputs: 4x LEDs
• Expansion: 40 pin System Bus, 34 pin GPIO (2.0 mm)
• Debug: 10 pin JTAG (2.0 mm)
• Power: regulated 5V
• OS Support
  • Windows CE 6
  • Linux

Mini2451,friendlyarm mini2451,arm9 mini2451,china mini2451 manufacturer

http://www.arm-lab.com/mini2451-friendlyarm-arm9-s3c2451-with-35lcd-p-748
